Bestseller

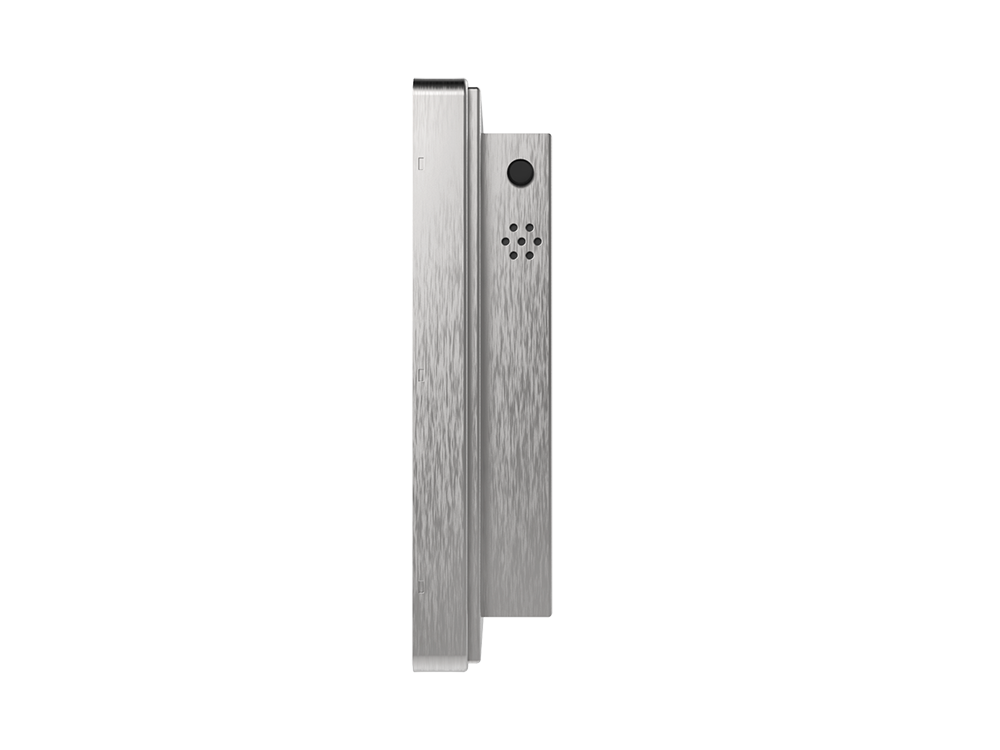

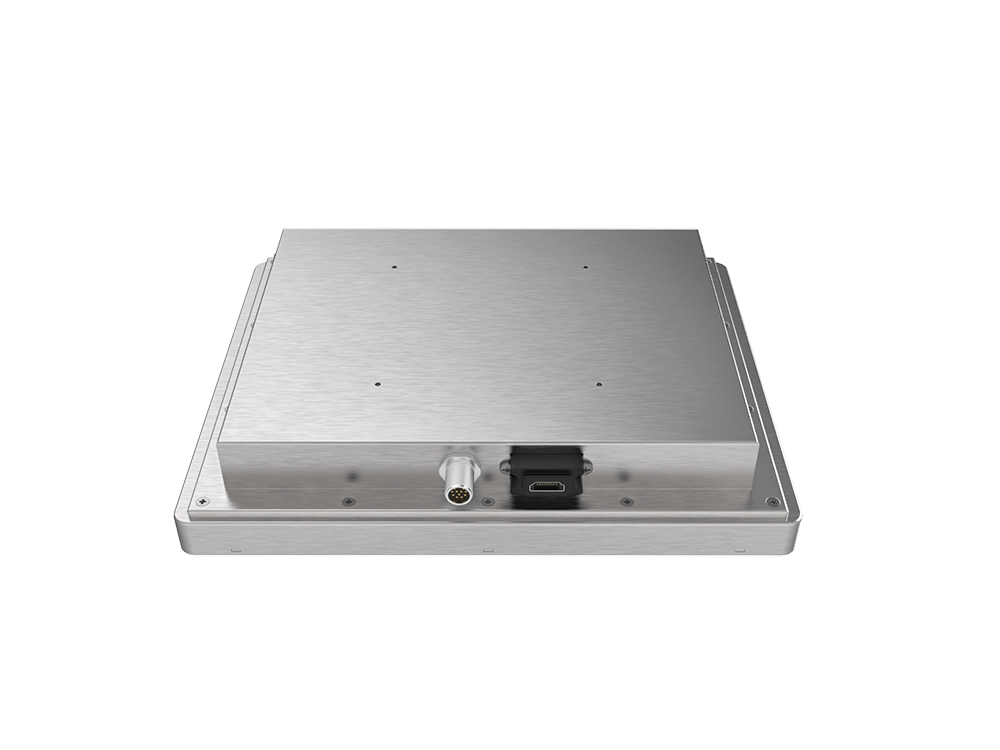

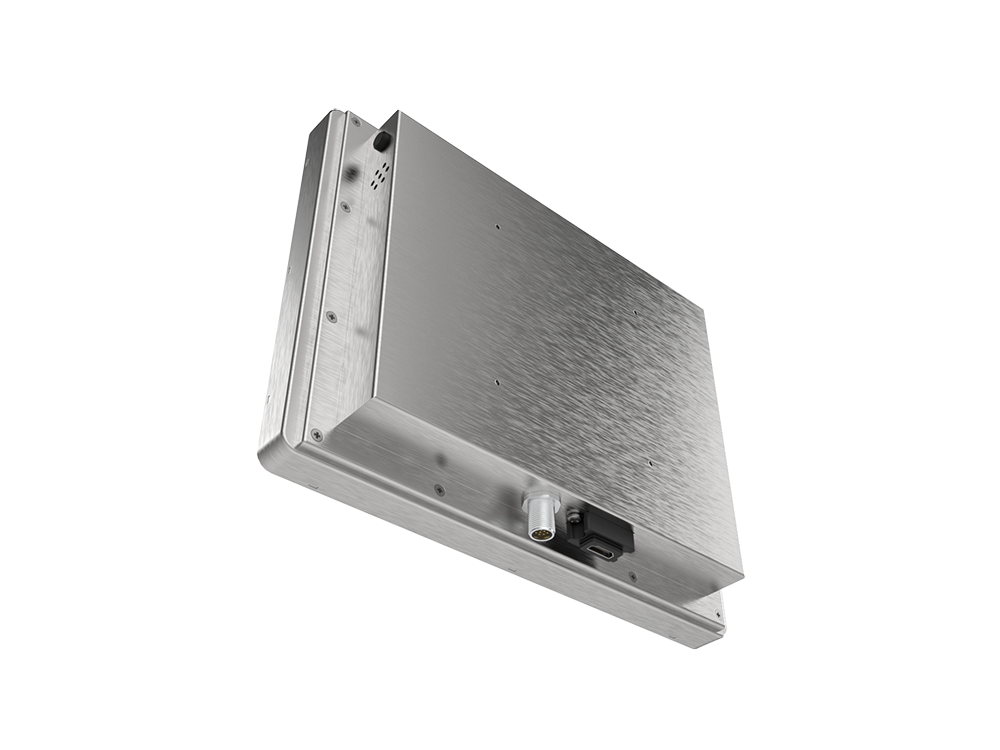

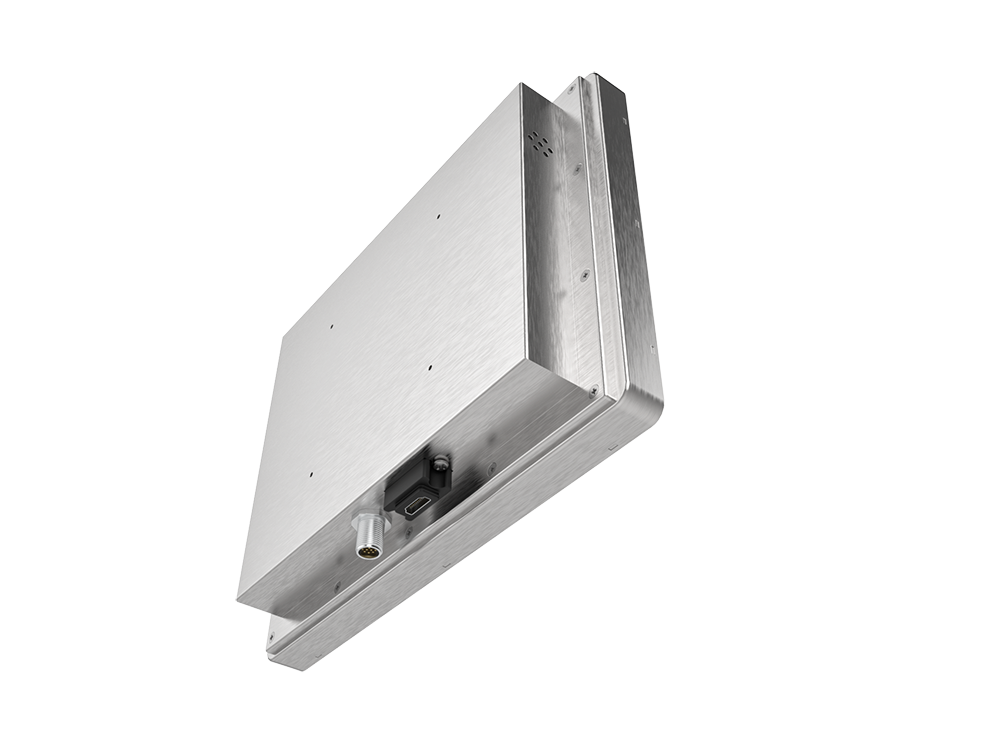

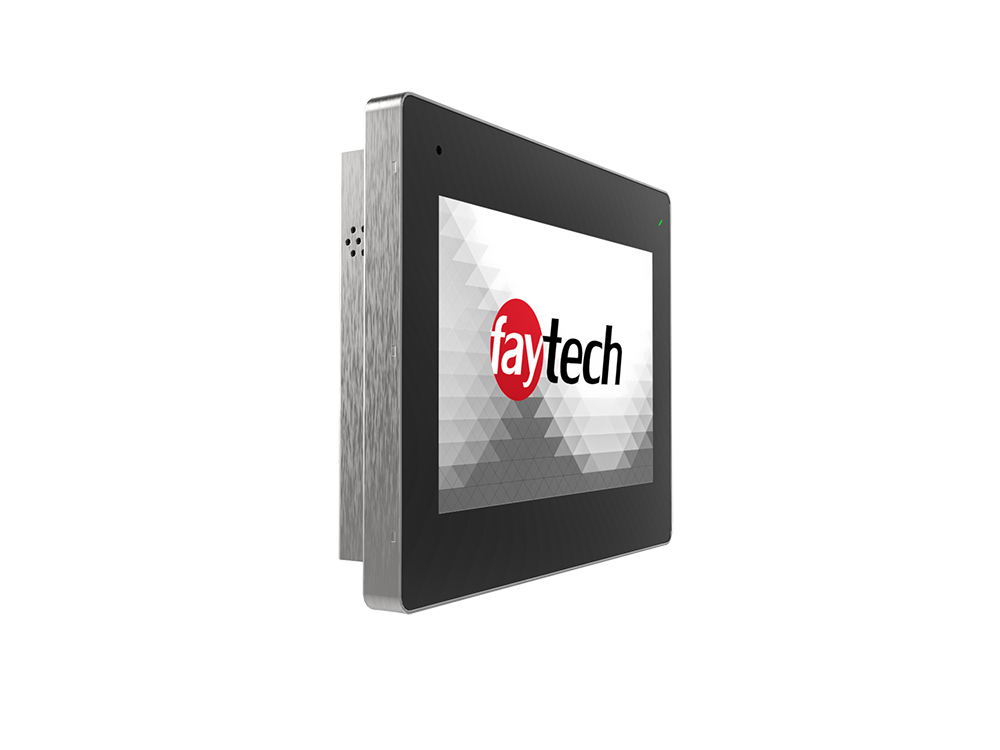

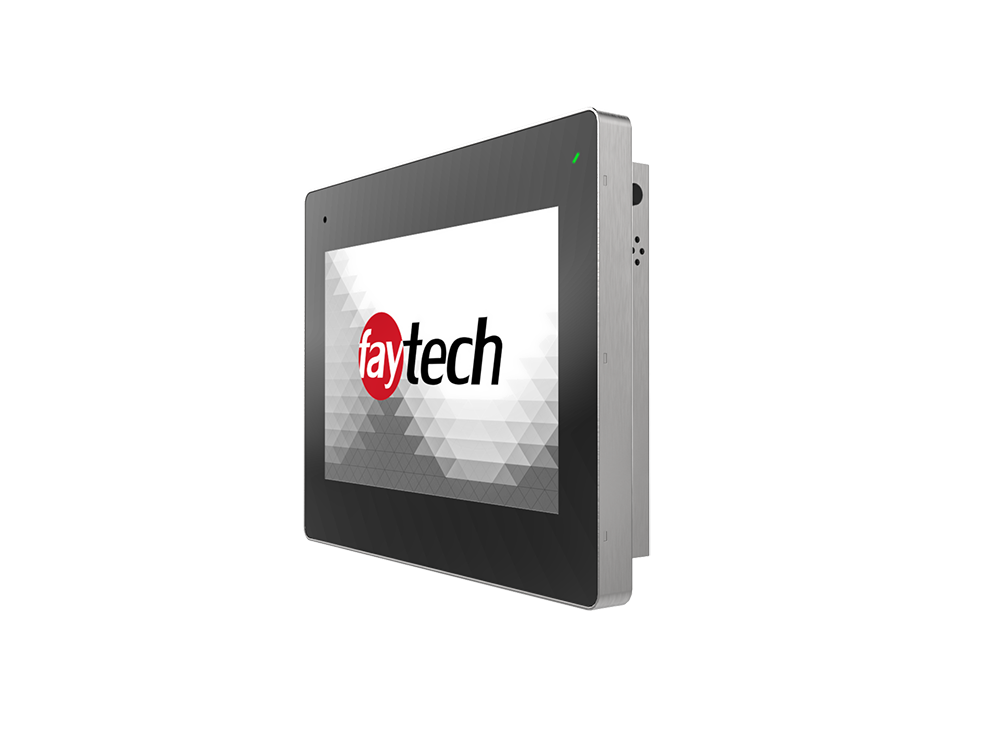

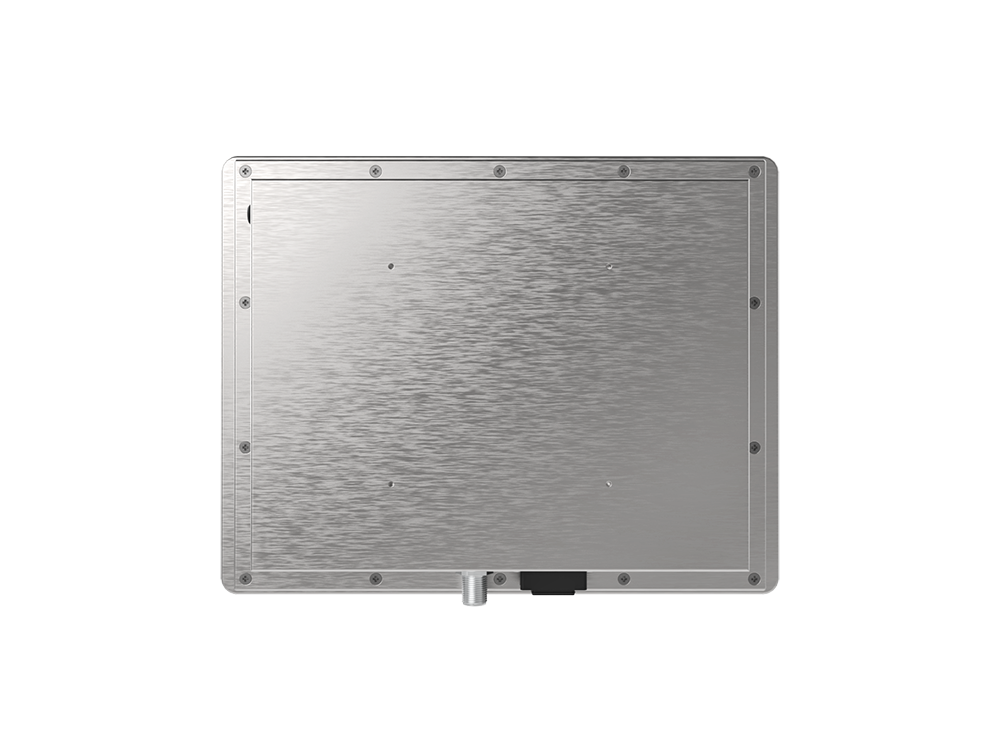

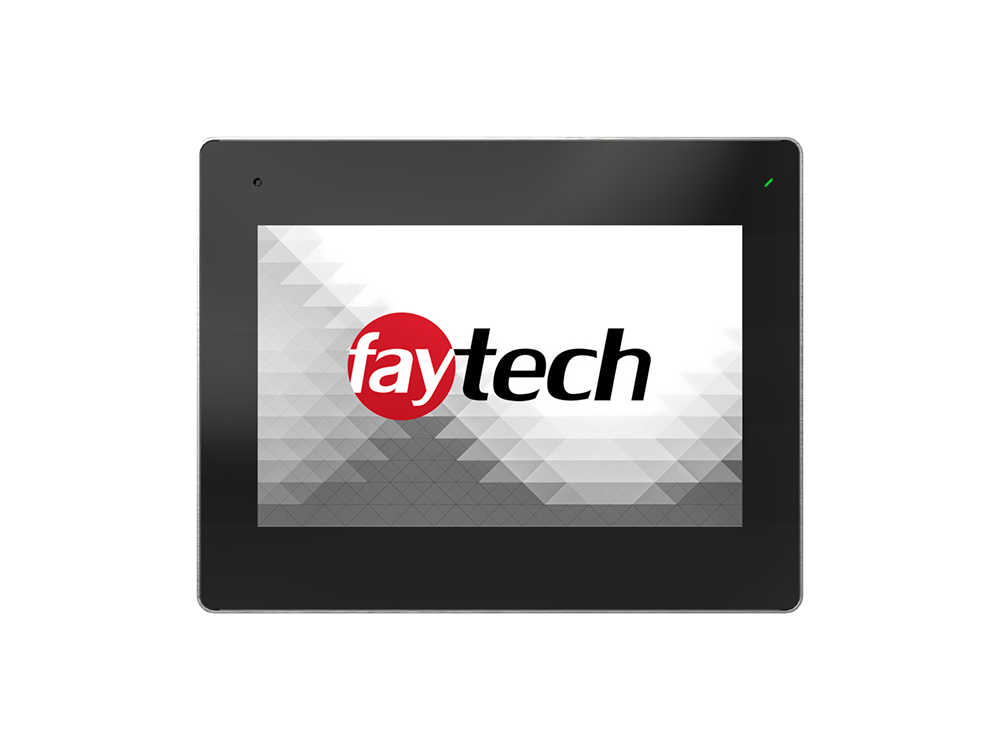

10.1" IP69K Capacitive Touch Monitor (stainless steel)
Description
FT101TMIP69KCAPHBOB
The devices in this full outdoor series are perfect for outdoor or semi-outdoor application, but also for healthcare and food industries, due to their complete stainless steel casing. Great to be used as control panels in industrial settings, kitchens, food processing plants, outdoor as entrance control, car washes or any similar application.
- Increased brightness (1000+ cd/m2)
- Complete IP69K protection (dust- and waterproof)
- Solution with M12 lockable connectors
- 100,000 hours of MTBF for longevity and 24/7 operation
- Ability to operate in environments with direct sunlight (1080 W/m2 sunlight radiation)
- Aesthetically pleasing and hygienic brushed stainless steel design
DISPLAY
| Display Interface | LVDS |
| Viewing Angle [°] | 170/170 |
| LED lifetime / MTBF [h] | 100000 |
| Contrast Ratio | 1000:1 |
| Brightness [cd/m²] | 1000 |
| Active Area [mm] | 216.96 × 135.60 |
| Resolution | 1280 × 800 |
| Aspect Ratio | 16:10 |
| Display Size [inch] | 10.1 |
MONITOR SYSTEM
| Connectors | IP69K 9-36V M12 connector (12 pin), IP69K HDMI connector |
| Loudspeaker | 2× 2W |
| Monitor Firmware | Standard |
| Monitor Controller | RTD 2556T |
TOUCH PANEL (PCAP)
| Optical Bonding | Clear Bond® |
| Touch Resolution TX | 24 |
| Touch Resolution RX | 39 |
| Touch Interface | USB |
| Touch Controller | EXC81W60 |
| Strengthening | Thermally Strengthened |
| Printing Color | RAL9004 (Black) |
| IK Protection | IK08 |
| Cover Glass Surface Treatement | AG (chemical etching) |
| Glass Thickness [mm] | 2.0 |
| Printing Type | Ceramic |
| Touch Points | 10 |
| Touch Type | Projected Capacitive |
ENVIRONMENTAL CONDITIONS
| Humidity Range | 10% to 90% |
| Storage Temperature | -20°C to 70°C |
| Operation Temperature | -20°C to 70°C |
CERTIFICATIONS
| Certifications | CE, FCC |
CHASSIS
| Mounting | VESA 100 |
| Case size L × W × H [mm] | 272.8 × 214.4 × 51.2 |
| Case Material | Stainless Steel |
| Case Finish | Brushed |
| Case Coating | Plain |
| Case Color | Silver |
| IP Protection | IP69K |
| Case Size | Standard |
| Case Design | SS-IP69K |
ACCESSORIES
| Other Accessories | Short Instruction Manual |
| Power Adapter | None |
POWER
| Stand-By Consumption | <1 |
| Power Consumption | 15 |
| Working Power | 9-36 |
| Power Indicator | Green LED |
WEIGHT & PACKAGING
| Packaging Size L × W × H [mm] | 433.0 × 290.0 × 80.0 |
| Packaging Material | 100% recyclable cardboard and polyethylene (PE) |
| Gross Weight | 4.20 |
| Net Weight | 3.10 |
Downloads
3D Model
Datasheet
Short Manual
