Bestseller

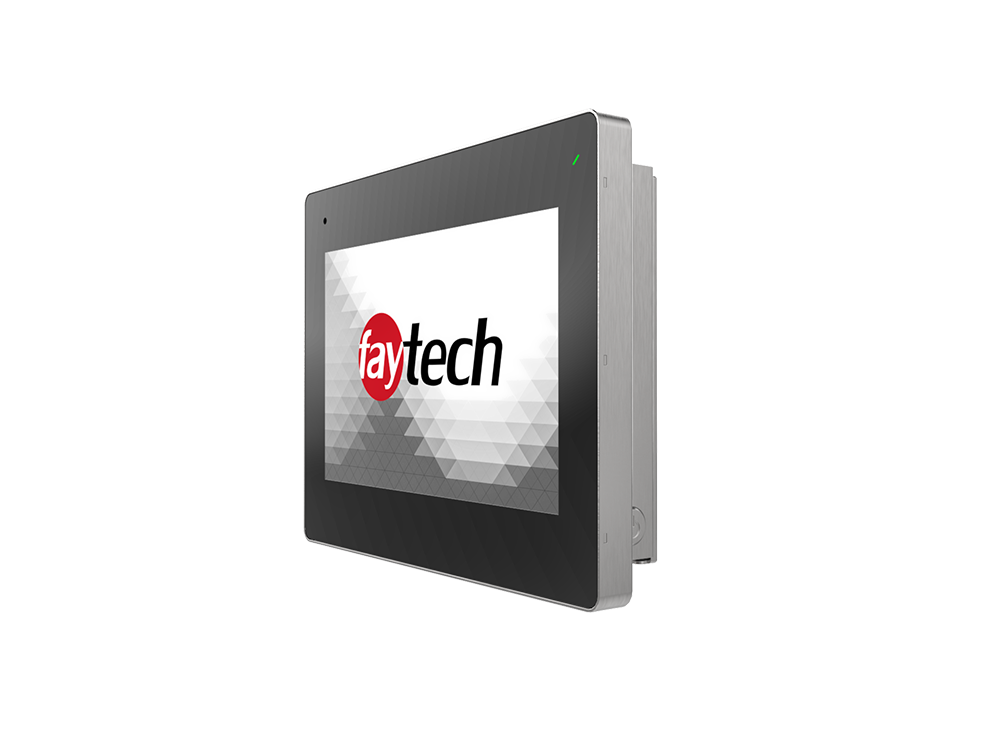

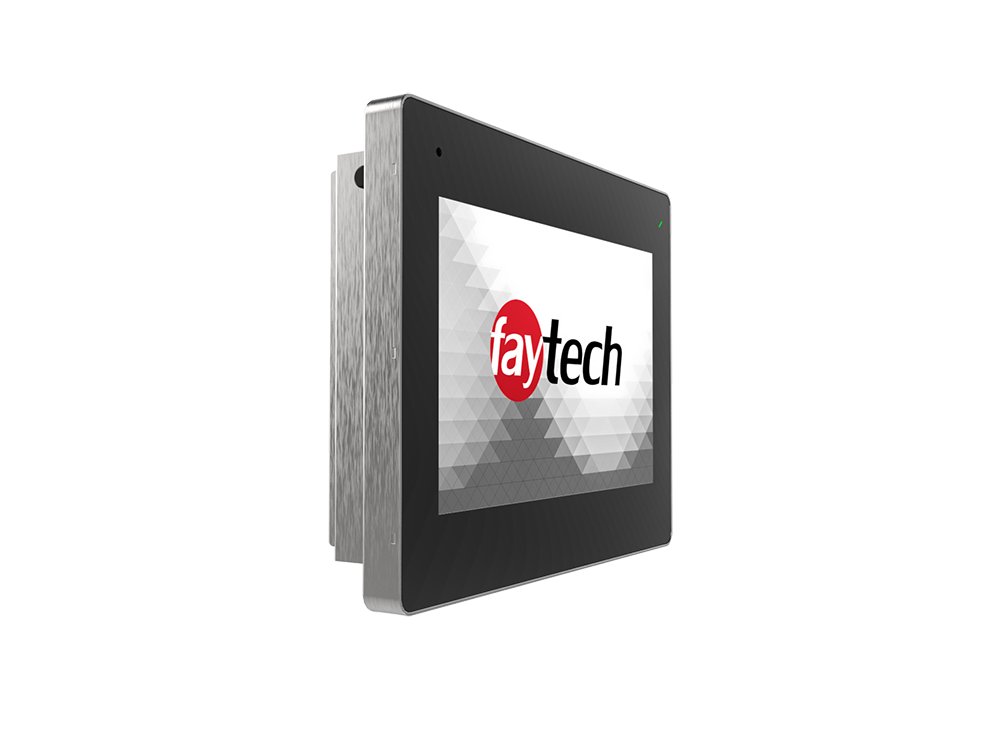

10.1" IP65 Capacitive Touch PC (x6413E, stainless steel)
Description
FT101X6211EIP65CAPHBOB
The devices in this full outdoor series are perfect for outdoor or semi-outdoor application, but also for healthcare and food industries, due to their complete stainless steel casing. Great to be used as control panels in industrial settings, kitchens, food processing plants, outdoor as entrance control, car washes or any similar application.
- Intel® Atom® x6413 Processor
- 8 GB RAM memory, 120 GB Industrial SSD
- Pre-installed Debian 12 Operating System
- Also supports Linux Ubuntu 22.4, Windows 10 & 11
- Increased brightness (1000+ cd/m2)
- Complete IP65 protection (dust- and waterproof)
- Solution with standard cabling and connectors through unique seal
- 100,000 hours of MTBF for longevity and 24/7 operation
- Ability to operate in environments with direct sunlight (1080 W/m2 sunlight radiation)
- Aesthetically pleasing and hygienic brushed stainless steel design
DISPLAY
| Display Interface | LVDS |
| Viewing Angle [°] | 170/170 |
| LED lifetime / MTBF [h] | 100000 |
| Contrast Ratio | 1000:1 |
| Brightness [cd/m²] | 1000 |
| Brightness [cd/m²] | 1000 |
| Active Area [mm] | 216.96 × 135.60 |
| Resolution | 1280 × 800 |
| Aspect Ratio | 16:10 |
| Display Size [inch] | 10.1 |
| Display Size [inch] | 10.1 |
PC SYSTEM (INTEL)

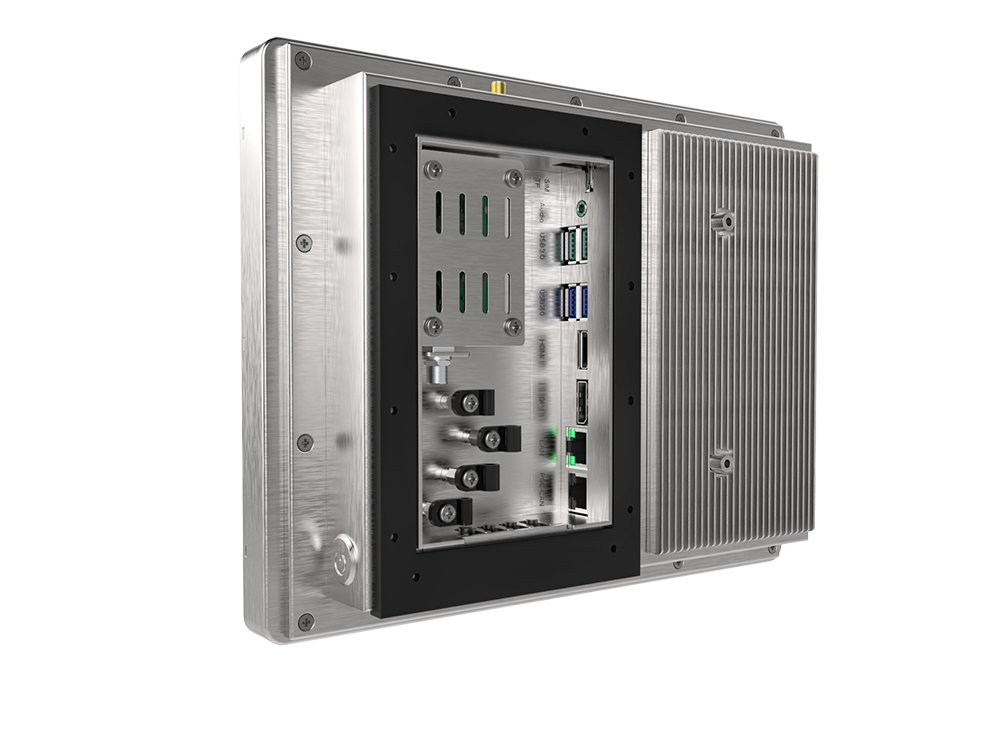

| Connectors | HDMI, DP, Audio In / Out, USB 2.0 (x2), USB 3.2 (x2), LAN RJ45 (x2), Serial RS232 (x2), SD card slot, DC-In |
| Wi-Fi | Intel® AC 3168 |
| Loudspeaker | 2× 2W |
| SSD Size | 120 GB |
| RAM Size | 8 GB |
| OS Available (request) | Linux Ubuntu 22.4, Windows 10 & 11 |
| Standard Operating System | Debian 12 |
| Processor | Intel Atom x6211E (Elkhart Lake) |
TOUCH PANEL (PCAP)
| Optical Bonding | Clear Bond® |
| Touch Resolution TX | 24 |
| Touch Resolution RX | 39 |
| Touch Interface | USB |
| Touch Controller | EXC81W60 |
| Strengthening | Thermally Strengthened |
| Printing Color | RAL9004 (Black) |
| IK Protection | IK08 |
| Cover Glass Surface Treatement | AG (chemical etching) |
| Glass Thickness [mm] | 2.0 |
| Printing Type | Ceramic |
| Touch Points | 10 |
| Touch Type | TOUCH |
| Touch Type | Projected Capacitive |
ENVIRONMENTAL CONDITIONS
| Humidity Range | 10% to 90% |
| Storage Temperature | -20°C to 70°C |
| Operation Temperature | -20°C to 70°C |
CERTIFICATIONS
| Certifications | CE, FCC |
CHASSIS
| Mounting | VESA 100 |
| Case size L × W × H [mm] | 272.8 × 214.4 × 62.7 |
| Case Material | Stainless Steel |
| Case Finish | Brushed |
| Case Coating | Plain |
| Case Color | Silver |
| IP Protection | IP65 |
| IP Protection | IP65 |
| Case Size | Standard |
| Case Design | SS-IP65 |
ACCESSORIES
| Other Accessories | Wi-Fi Antenna, Short Instruction Manual |
| Power Adapter | 100-240V ACDC active switching: 12V DC-Out |
POWER
| Stand-By Consumption | <1 |
| Power Consumption | 27 |
| Working Power | 9-36 |
| Power Indicator | Green LED |
WEIGHT & PACKAGING
| Packaging Size L × W × H [mm] | 433.0 × 290.0 × 80.0 |
| Packaging Material | 100% recyclable cardboard and polyethylene (PE) |
| Gross Weight | 4.20 |
| Net Weight | 3.10 |
Downloads
3D Model
Datasheet
Short Manual
