Bestseller

Skip to product information
1 of 6

13.3" Capacitive Touch PC (i5-1145G7E)

Only 5 units left
  • Vendor:

    faytech

  • Type:

    Touch Device

Description

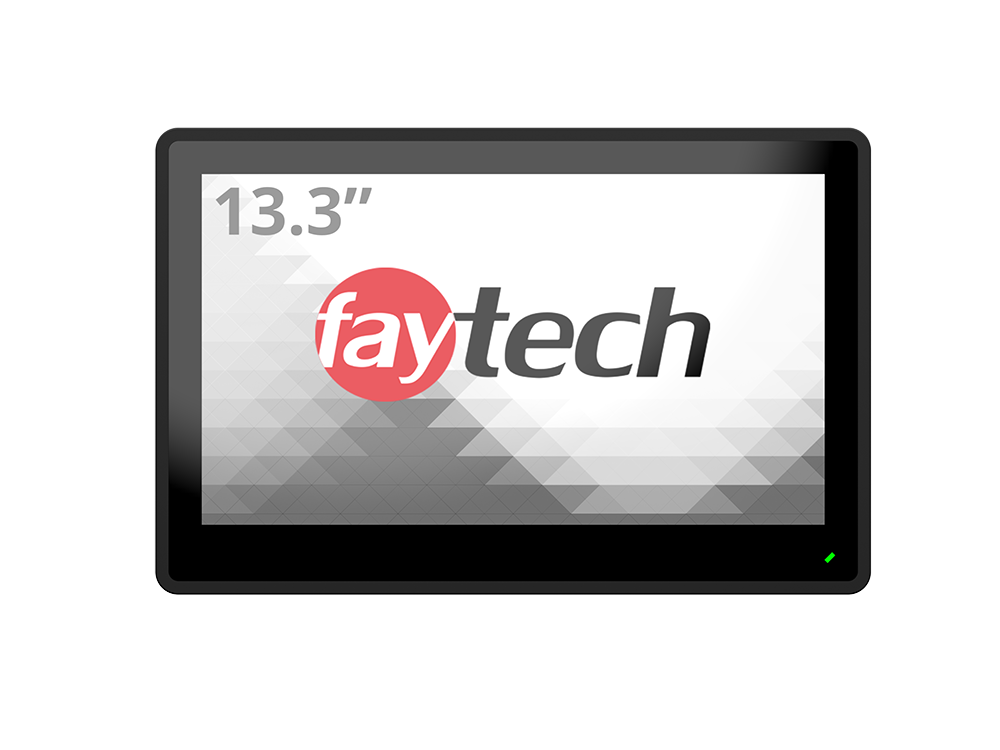

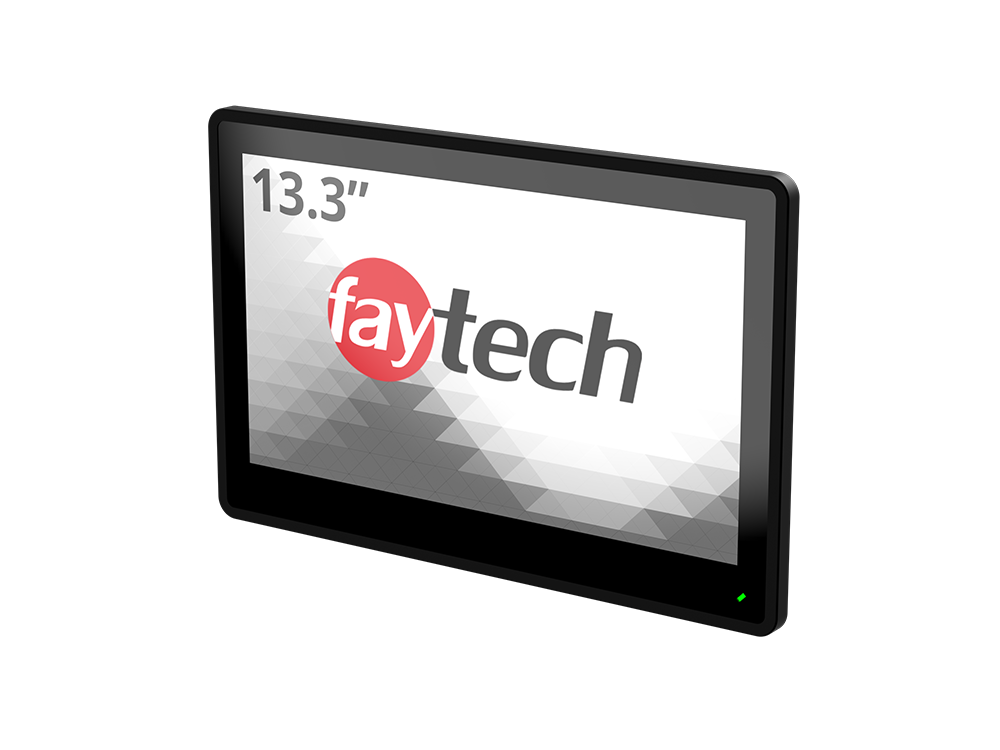

13.3" Capacitive Touch PC (i5-1145G7E)

FT133BI5CAPOB

faytech's Capacitive Touch PCs have a modern sleek look with its flat edge to edge glass IP65 water- and dust proof front panels. This device is optically bonded, has capacitive 10-finger multitouch with glass front reaching Mohs 7 and has anti-glare (chemical etching) burned into the glass. This solution consists of front kit and back kit, ensuring your required configuration is easily customizable.

This Touch PC is powered by faytech's industrial Tiger Lake U mainboard. It is driven by the powerful Intel Core i5-1145G7E processor with up to 4.10 GHz burst frequency (also available with Intel i3-1115G4E or i7-1185G7E processor). This version is equipped with 8 GB RAM, 240 GB SSD and Intel’s Iris Xe Graphics chipset.

These faytech PCs are the perfect choice for a wide variety of applications including POS systems, control panels in industrial fields, in kiosk systems, office/residence automation, digital signage and in areas like shopping malls, classrooms, hotels and many more.

  • Intel® Core™ i5-1145G7E
  • 8 GB RAM memory, 240 GB Industrial SSD
  • Pre-installed Debian 12 Operating System
  • Also supports Linux Ubuntu 22.4, Windows 10 & 11
  • Anti-glare surface treatment (chemical etching)
  • 10-Finger-Multi Touch Capacitive Touch Panel
  • 1.1mm cover glass with 7H surface hardness
  • Optically bonded Touch Panel to LCD Panel
  • Large version back kit (9-36V DC-in)
  • Patented IP65 front with silicon seal
  • 2 years guarantee (24/7 usage)

 Has IP65 front / IP40 back  Has USB 2.0 Connector  Has audio connector  Has Clear bond glass  Has DP Connector  Has USB 3.0 connector  Has HDMI Connector  Has Anti-Microbial / Kastus Coating as Optional  Has SD Card Slot  Has RS-232 Connector  Has SSD  Has Wi-Fi  Has RJ45

DISPLAY


Display Interface eDP
Viewing Angle [°] 170/170
LED lifetime / MTBF [h] 15000
Contrast Ratio 700:1
Brightness [cd/m²] 300
Active Area [mm] 293.76 × 165.24
Resolution 1920 × 1080 (HD)
Aspect Ratio 16:9
Display Size [inch] 13.3
Display Size [inch] 13.3

PC SYSTEM (INTEL)

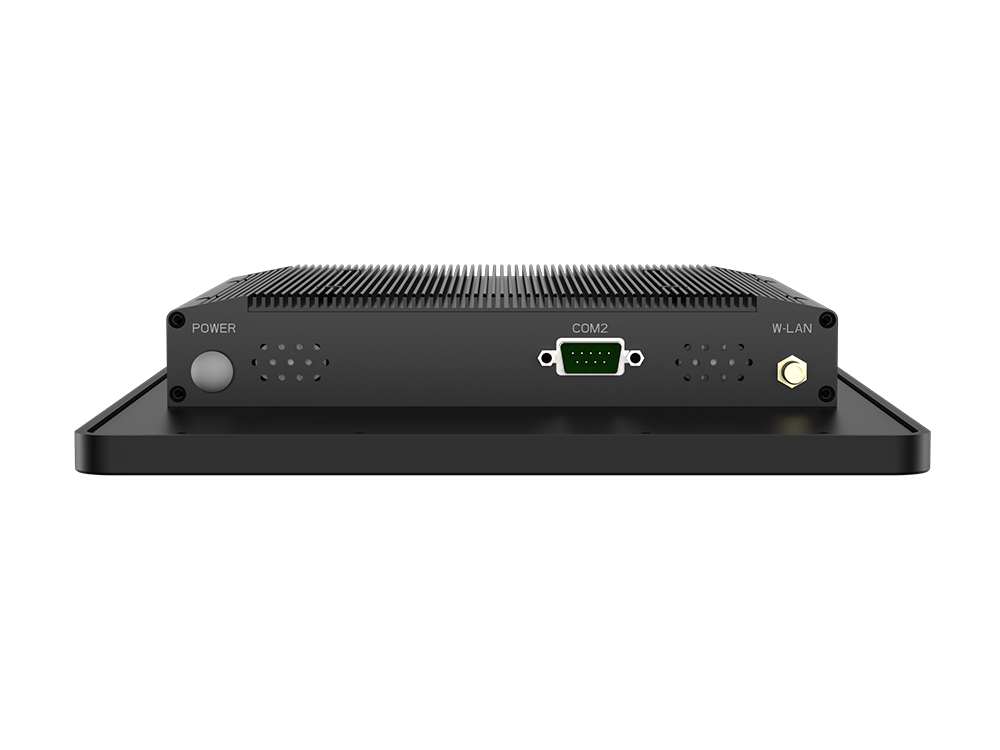

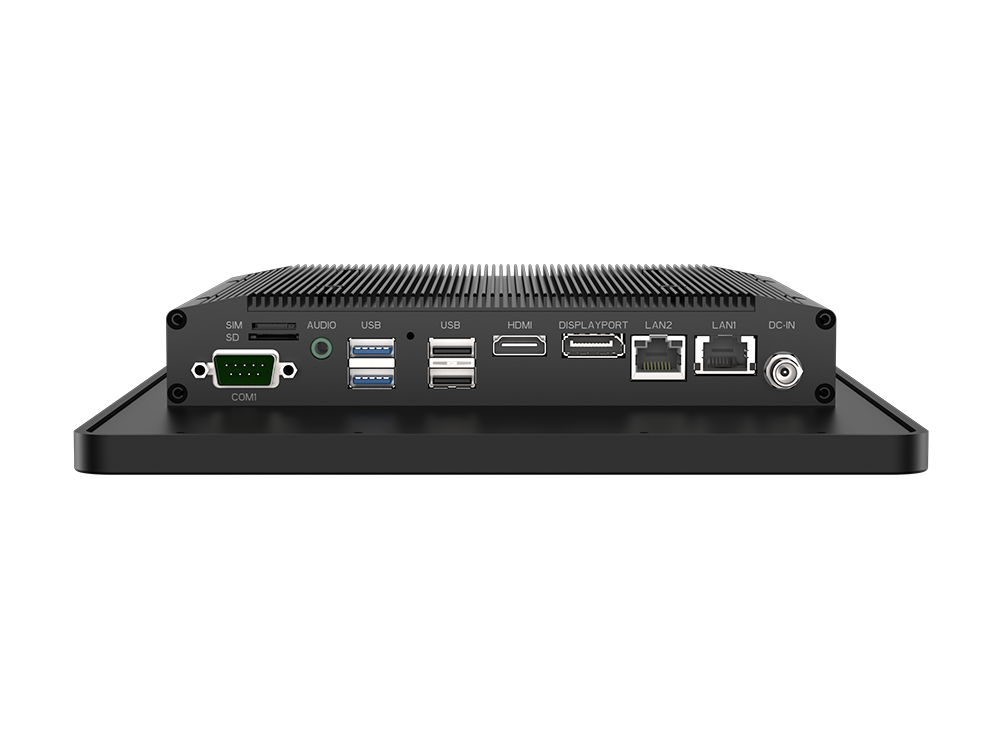

Connectors HDMI, DP, Audio In / Out, USB 2.0 (x2), USB 3.2 (x2), LAN RJ45 (x2), Serial RS232 (x2), SD card slot, DC-In
Wi-Fi Intel® AC 3168
Loudspeaker 2× 2W
SSD Size 240 GB
RAM Size 8 GB
OS Available (request) Linux Ubuntu 22.4, Windows 10 & 11
Standard Operating System Debian 12
Processor Intel Core i5-1145G7E (Tiger Lake U)

TOUCH PANEL (PCAP)


Optical Bonding Clear Bond®
Touch Resolution TX 30
Touch Resolution RX 53
Touch Interface USB
Touch Controller EXC81W84
Strengthening Thermally Strengthened
Printing Color RAL9004 (Black)
IK Protection IK08
Cover Glass Surface Treatement AG (chemical etching)
Glass Thickness [mm] 1.1
Printing Type Organic
Touch Points 10
Touch Type PCAP
Touch Type Projected Capacitive

ENVIRONMENTAL CONDITIONS


Humidity Range 10% to 90%
Storage Temperature -20°C to 60°C
Operation Temperature -10°C to 60°C

CERTIFICATIONS


Certifications CE, FCC

CHASSIS (CLAMPS)


Mounting VESA 100
Amount of clamps required 4
Max. wall thickness for clamp supports [mm] 5.0
Cut-out for clamp supports L × H [mm] 322.0 × 196.0
Case size L × W × H [mm] 338.2 × 220.7 × 42.3
Case Material Aluminum
Case Finish None
Case Coating Powder Coating
Case Color RAL9004 (Black)
IP Protection IP65 front / IP40 back
Case Size Large
Case Design Rubber Frame

ACCESSORIES


Other Accessories Wi-Fi Antenna, Short Instruction Manual
Power Adapter 100-240V ACDC active switching: 12V DC-Out

POWER


Stand-By Consumption <1
Power Consumption 18.8
Working Power 9-36
Power Indicator Green LED

WEIGHT & PACKAGING


Packaging Size L × W × H [mm] 495.0 × 310.0 × 80.0
Packaging Material 100% recyclable cardboard and polyethylene (PE)
Gross Weight 5.30
Net Weight 3.40
