21.5" ARM Capacitive Touch PC (A311D)

Only 5 units left
  • Vendor:

    faytech

  • Type:

    Touch Device

Description

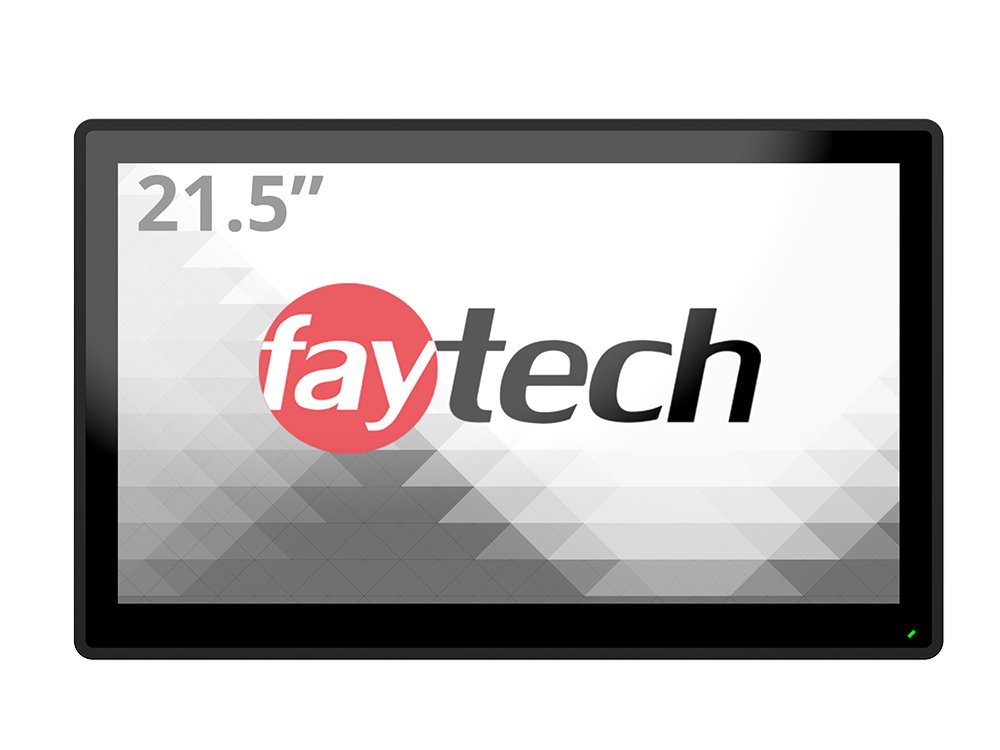

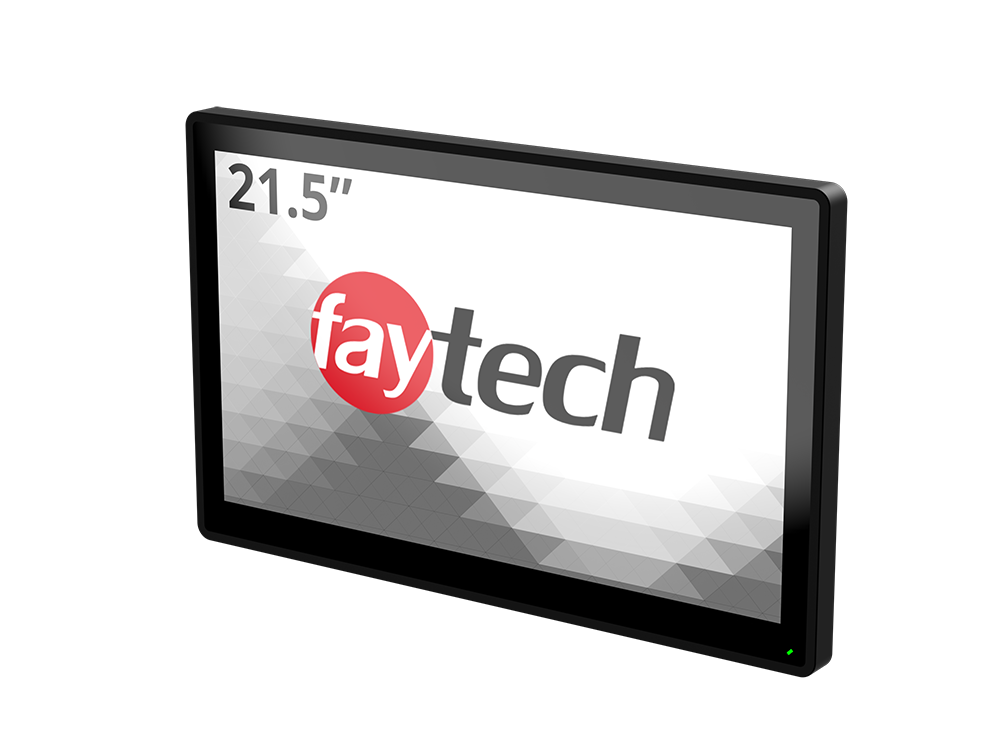

21.5" ARM Capacitive Touch PC (A311D)

FT215BA311DPRCAPOB

faytech's Capacitive Touch PCs have a modern sleek look with its flat edge to edge glass IP65 water- and dust proof front panels. This device is optically bonded, has capacitive 10-finger multitouch with glass front reaching Mohs 7 and has anti-glare (chemical etching) burned into the glass. This solution consists of front kit and back kit, ensuring your required configuration is easily customizable.

This Touch PC is powered by faytech's Amlogic A311D mainboard. It is driven by the powerful Quad-Core Cortex-A73 + Dual-core Cortex-A53 processor with NPU of 5.0 Tops (also available with S905D3). This version is equipped with 4 GB RAM, 64 GB eMMC and Mali G52 MP4 GPU. This solution consists of front kit and back kit, ensuring your required configuration is easily customizable.

These faytech PCs are the perfect choice for a wide variety of applications including POS systems, control panels in industrial fields, in kiosk systems, office/residence automation, digital signage and in areas like shopping malls, classrooms, hotels and many more.

  • Amlogic A311D: Quad-Core Cortex-A73 + Dual-core Cortex-A53
  • 4 GB RAM LPDDR4 memory, 64 GB eMMC 5.1
  • Pre-installed Android 9 Operating System
  • Also supports Linux Ubuntu 22.4, Debian 12
  • NPU of 5.0 Tops for high AI performance
  • Anti-glare surface treatment (chemical etching)
  • 10-Finger-Multi Touch Capacitive Touch Panel
  • 1.1mm cover glass with 7H surface hardness
  • Optically bonded Touch Panel to LCD Panel
  • Large version back kit (9-36V DC-in)
  • Patented IP65 front with silicon seal
  • 2 years guarantee (24/7 usage)

 Has Clear bond glass  Has HDMI Connector  Has RJ45  Has IP65 front / IP40 back  Has Anti-Microbial / Kastus Coating as Optional  Has SD Card Slot  Has audio connector  Has RS-232 Connector  Has USB 2.0 Connector  Has Wi-Fi

DISPLAY


Display Interface LVDS
Viewing Angle [°] 178/178
LED lifetime / MTBF [h] 30000
Contrast Ratio 1000:1
Brightness [cd/m²] 250
Active Area [mm] 476.06 × 267.79
Resolution 1920 × 1080 (HD)
Aspect Ratio 16:9
Display Size [inch] 21.5
Display Size [inch] 21.5

PC SYSTEM (ARM)

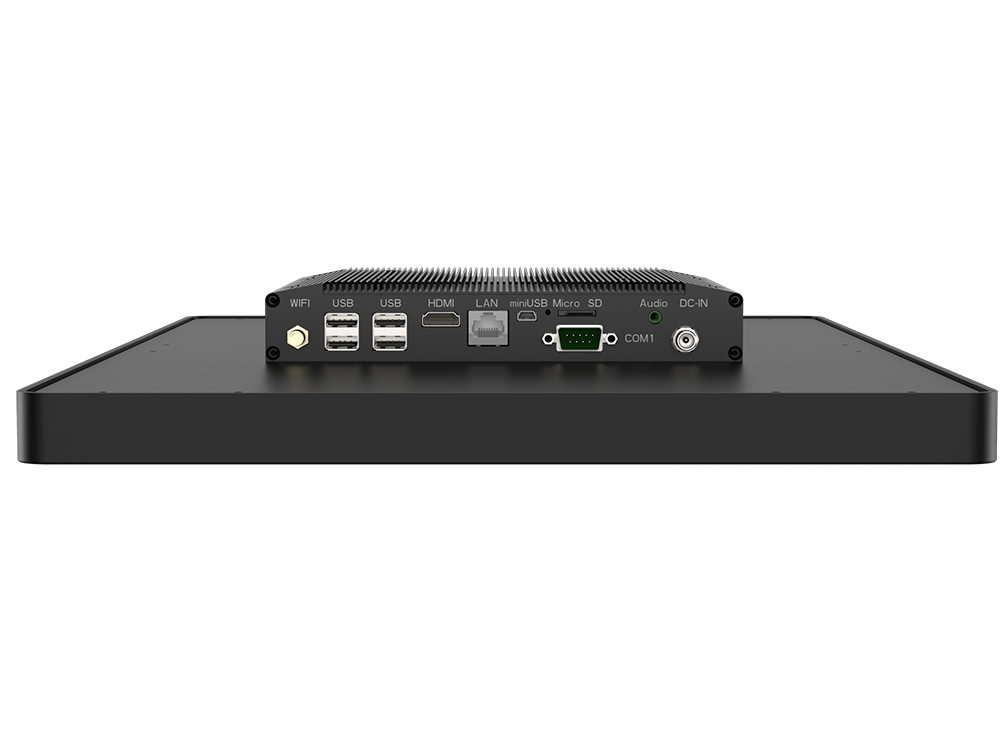

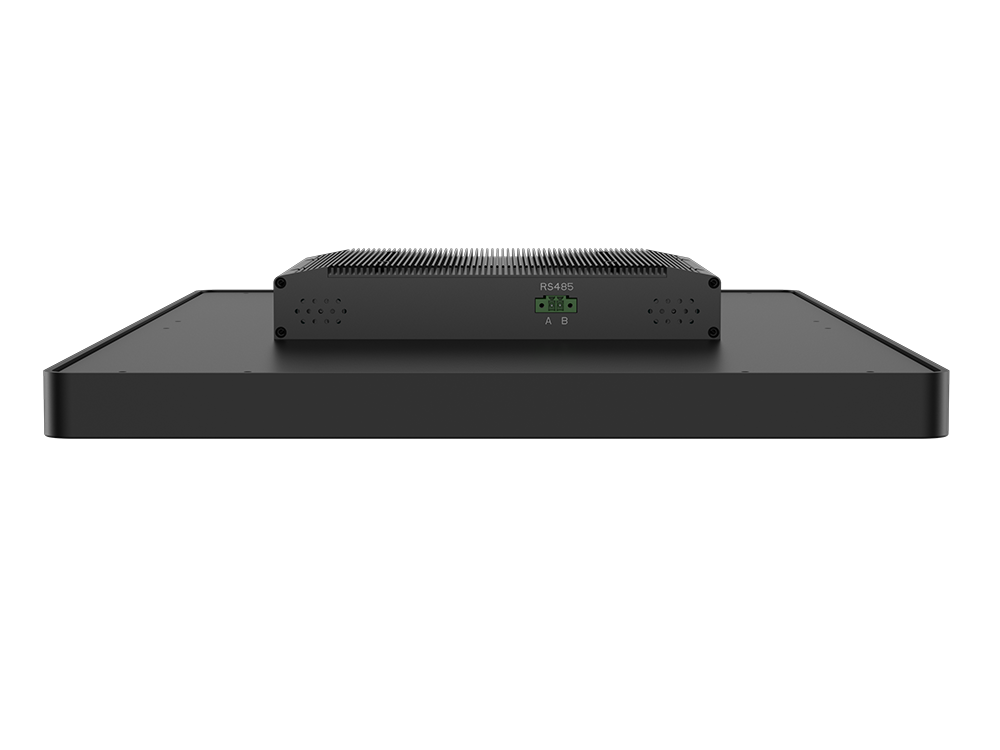

Connectors HDMI, Audio In / Out, USB 2.0 (x4), USB OTG, LAN RJ45, Serial RS232, Serial RS485, SD card slot, DC-In
Wi-Fi + BT RTL8821 + BT4.0
Loudspeaker 2× 2W
NPU 5.0 TOPS
GPU Mali G52 MP4
EMMC Size 64 GB
RAM Size 4 GB
OS Available on Request Linux Ubuntu 22.4, Debian 12
Standard Operating System Android 9.0
Processor Amlogic A311D: Quad-Core Cortex-A73 + Dual-core Cortex-A53

TOUCH PANEL (PCAP)


Optical Bonding Clear Bond®
Touch Resolution TX 42
Touch Resolution RX 74
Touch Interface USB
Touch Controller EXC81W84
Strengthening Thermally Strengthened
Printing Color RAL9004 (Black)
IK Protection IK08
Cover Glass Surface Treatement AG (chemical etching)
Glass Thickness [mm] 1.1
Printing Type Organic
Touch Points 10
Touch Type Projected Capacitive
Touch Type PCAP

ENVIRONMENTAL CONDITIONS


Humidity Range 10% to 90%
Storage Temperature -20°C to 60°C
Operation Temperature -10°C to 60°C

CERTIFICATIONS


Certifications CE, FCC

CHASSIS (CLAMPS)


Mounting VESA 100
Amount of clamps required 6
Max. wall thickness for clamp supports [mm] 5.0
Cut-out for clamp supports L × H [mm] 508.0 × 307.0
Case size L × W × H [mm] 532.0 × 331.0 × 56.0
Case Material Aluminum
Case Finish None
Case Coating Powder Coating
Case Color RAL9004 (Black)
IP Protection IP65 front / IP40 back
Case Size Large
Case Design Rubber Frame

ACCESSORIES


Other Accessories Wi-Fi Antenna, Short Instruction Manual
Power Adapter 100-240V ACDC active switching: 12V DC-Out

POWER


Stand-By Consumption <1
Power Consumption 23.5
Working Power 9-36
Power Indicator Green LED

WEIGHT & PACKAGING


Packaging Size L × W × H [mm] 685.0 × 410.0 × 80.0
Packaging Material 100% recyclable cardboard and polyethylene (PE)
Gross Weight 8.50
Net Weight 5.80
