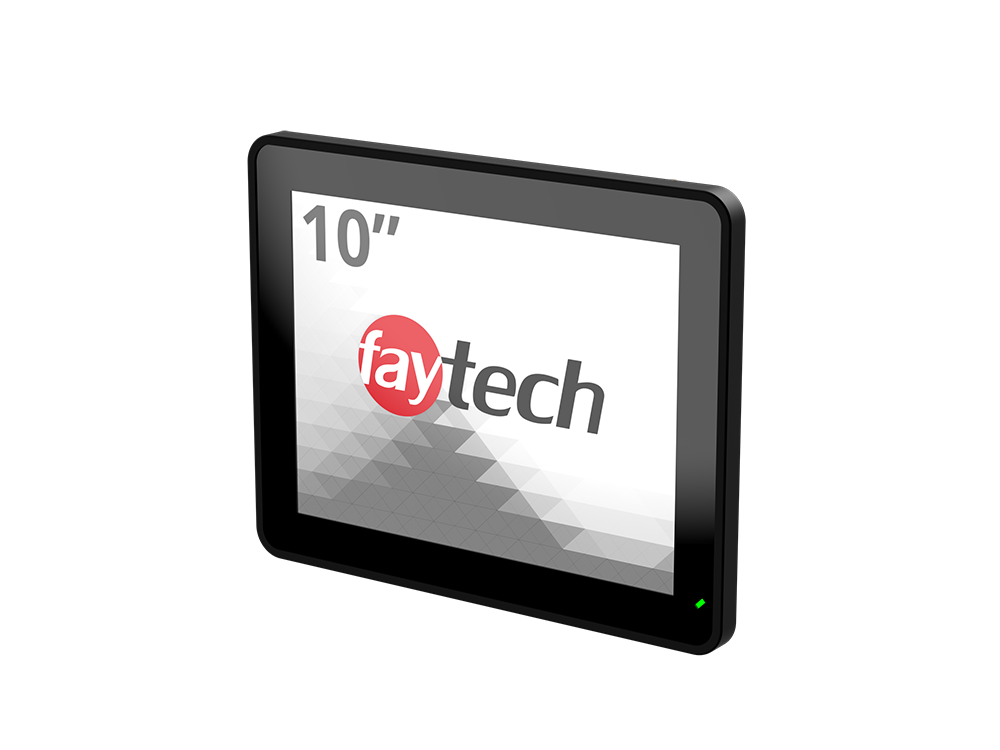

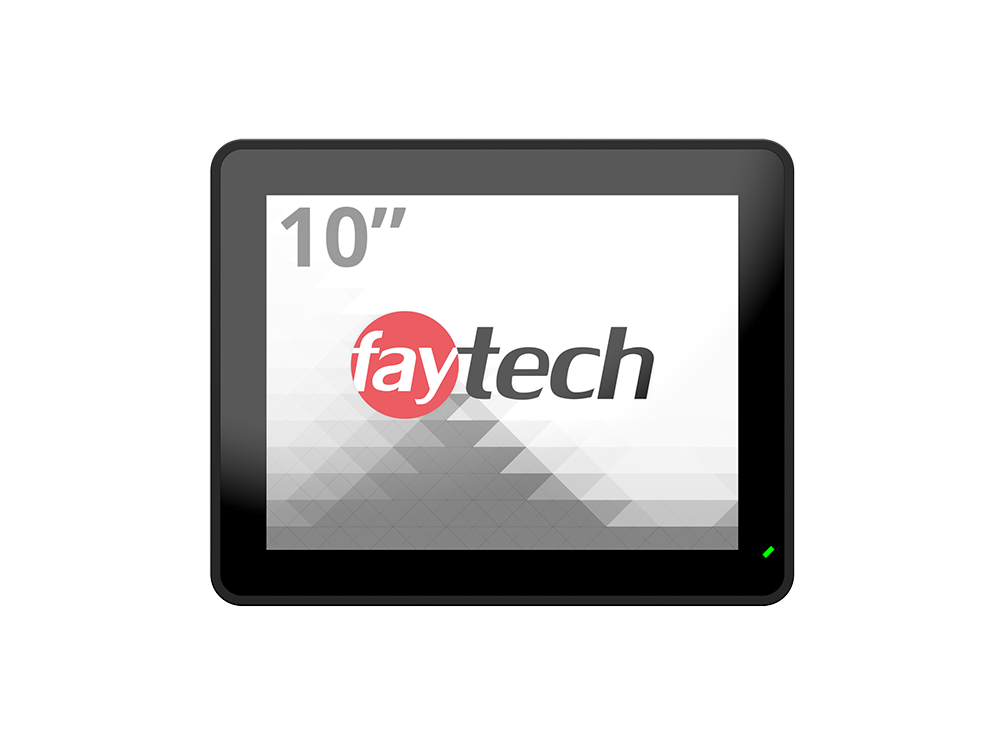

faytech's Capacitive Touch PCs have a modern sleek look with its flat edge to edge glass IP65 water- and dust proof front panels. This device is optically bonded, has capacitive 10-finger multitouch with glass front reaching Mohs 7 and has anti-glare (chemical etching) burned into the glass. This solution consists of front kit and back kit, ensuring your required configuration is easily customizable.
This Touch PC is powered by faytech’s industrial Elkhart Lake mainboard. It is driven by the powerful Intel Atom x6413E processor with up to 3.00 GHz burst frequency (also available with Intel x6211E or J6412 processor). This version is equipped with 8 GB RAM, 120 GB SSD and Intel’s UHD Graphic chipset.
These faytech PCs are the perfect choice for a wide variety of applications including POS systems, control panels in industrial fields, in kiosk systems, office/residence automation, digital signage and in areas like shopping malls, classrooms, hotels and many more.
Intel® Atom® x6413 Processor
8 GB RAM memory, 120 GB Industrial SSD
Pre-installed Debian 12 Operating System
Also supports Linux Ubuntu 22.4, Windows 10 & 11
Anti-glare surface treatment (chemical etching)
10-Finger-Multi Touch Capacitive Touch Panel
1.1mm cover glass with 7H surface hardness
Optically bonded Touch Panel to LCD Panel
Large version back kit (9-36V DC-in)
Patented IP65 front with silicon seal
2 years guarantee (24/7 usage)
DISPLAY
Display Interface
LVDS
Display Interface
LVDS
Viewing Angle [°]
170/170
Viewing Angle [°]
170/170
LED lifetime / MTBF [h]
20000
LED lifetime / MTBF [h]
20000
Contrast Ratio
800:1
Contrast Ratio
800:1
Brightness [cd/m²]
300
Brightness [cd/m²]
300
Active Area [mm]
196.61 × 147.46
Active Area [mm]
196.61 × 147.46
Resolution
1024 × 768
Resolution
1024 × 768
Aspect Ratio
4:3
Aspect Ratio
4:3
Display Size [inch]
9.7
Display Size [inch]
10
Display Size [inch]
9.7
Display Size [inch]
10
PC SYSTEM (INTEL)

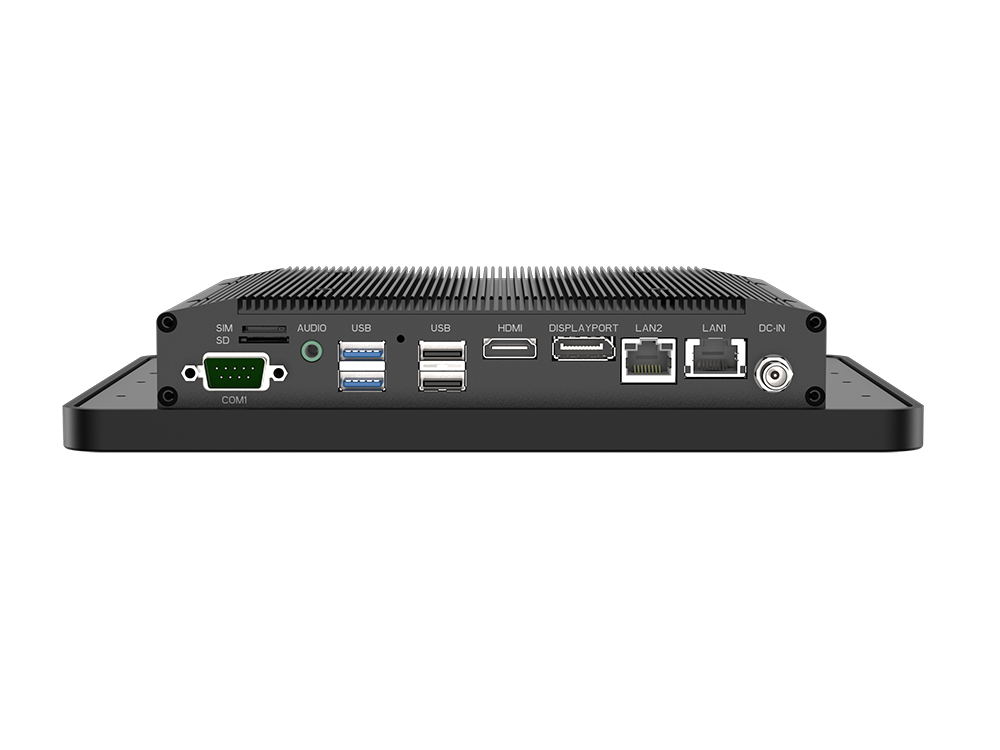

Connectors
HDMI, DP, Audio In / Out, USB 2.0 (x2), USB 3.2 (x2), LAN RJ45 (x2), Serial RS232 (x2), SD card slot, DC-In
Connectors
HDMI, DP, Audio In / Out, USB 2.0 (x2), USB 3.2 (x2), LAN RJ45 (x2), Serial RS232 (x2), SD card slot, DC-In
